Overview of Diffractive Physics

Quantum Chromo-Dynamics (QCD), the current theory for strong interactions, has been very successful at describing and predicting many areas of particle physics. Its successes are limited, however, to the perturbative regime where the strong coupling constant is small. About 40% of the total tex2html_wrap_inline2812 cross section at the Tevatron is elastic and diffractive scattering which are non-perturbative and cannot currently be calculated in QCD.

Figure 1(a) shows the diagram for elastic scattering in which a strongly interacting color singlet (pomeron) is exchanged resulting in the scattering of the proton and anti-proton. The right-hand side of the figure shows how a scattering would look in an ideal detector. The proton and anti-proton would be detected at extreme pseudorapiditiesgif with a separation of tex2html_wrap_inline2818 in azimuthal angle tex2html_wrap_inline2820. This figure also demonstrates the absence of associated particle production, or the rapidity gap, expected in elastic scattering due to the lack of color exchanged in the interaction. Figure 1(b) shows the diagram for diffractive dissociation, or single diffractive scattering, in which one of the beam particles (the proton in this case) has broken up, producing particles in the hemisphere of the detector opposite the detected tex2html_wrap_inline2822.

  figure214

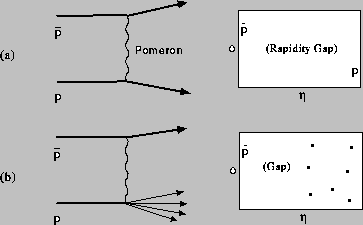

Figure 1: (a) The diagram for elastic scattering, in which a pomeron is exchanged resulting in the scattering of the proton and anti-proton. The tex2html_wrap_inline2824-tex2html_wrap_inline2820 plot shows the distribution of particles in this event--no particles are produced between the scattered proton and tex2html_wrap_inline2822. (b) The diagram for single diffractive scattering, which is similar to elastic scattering except that the proton breaks up, producing particles in a limited region of rapidity.

The properties of elastic and diffractive scattering are well-described by the phenomenology of pomeron exchange (Regge theory), where the pomeron is a color singlet with quantum numbers of the vacuum. The literature on diffractive dissociation is extensive and a few review articles are given in Ref. [1]. Regge theory predates the quark-gluon model, and it is not clear how to combine it with QCD. Definitions of the pomeron vary from a theoretical definition: ``the highest Regge trajectory with quantum numbers of the vacuum, responsible for the growth in the hadronic cross section with tex2html_wrap_inline2830 '' to an experimental one: ``the thing that causes rapidity gaps'' [2]. Many experiments have studied diffractive and elastic scattering at different center-of-mass energies, but due to the non-perturbative nature of the interactions, insight into the underlying process has been limited. The exact nature of the pomeron (Is it composed of quarks and gluons? hard or soft? the same object as a function of momentum transfer?) remains elusive, although recent theoretical ideas and experimental results are beginning to yield some answers. This brings us to the rather new field of hard diffraction.
